📍 Geographic Sourcing Advantage (Jinjiang Footwear Cluster): WIDEWAY is headquartered at 8F, Building 8A, NO.618 JINXIN Road, ChenDai Town, Jinjiang City, Fujian Province. Known internationally as "China's Footwear Capital", Chendai hosts the world's most concentrated ecosystem of athletic outsoles, flying-knit mesh, TPU injection molds, and chemical adhesives within a 5-kilometer radius. Raw material lead times are compressed to under 2 hours, allowing WIDEWAY to fulfill international bulk orders with unmatched speed, pricing stability, and supply chain resilience.
WIDEWAY operates 4 modern continuous conveyor assembly lines specializing in cold-cemented athletic running shoes, lightweight sneakers, lifestyle vulcanized footwear, and molded EVA recovery slides. Each line features a computerized infrared heat activation tunnel maintaining a constant 55°C–65°C heating curve.
Dual automated sole-pressing stations apply 0.4–0.6 MPa uniform hydraulic clamping force across toe, arch, and heel chambers, eliminating micro-gaps and guaranteeing a sole bonding peel strength exceeding 3.5 N/mm (far surpassing the 2.5 N/mm EN ISO athletic footwear requirement).

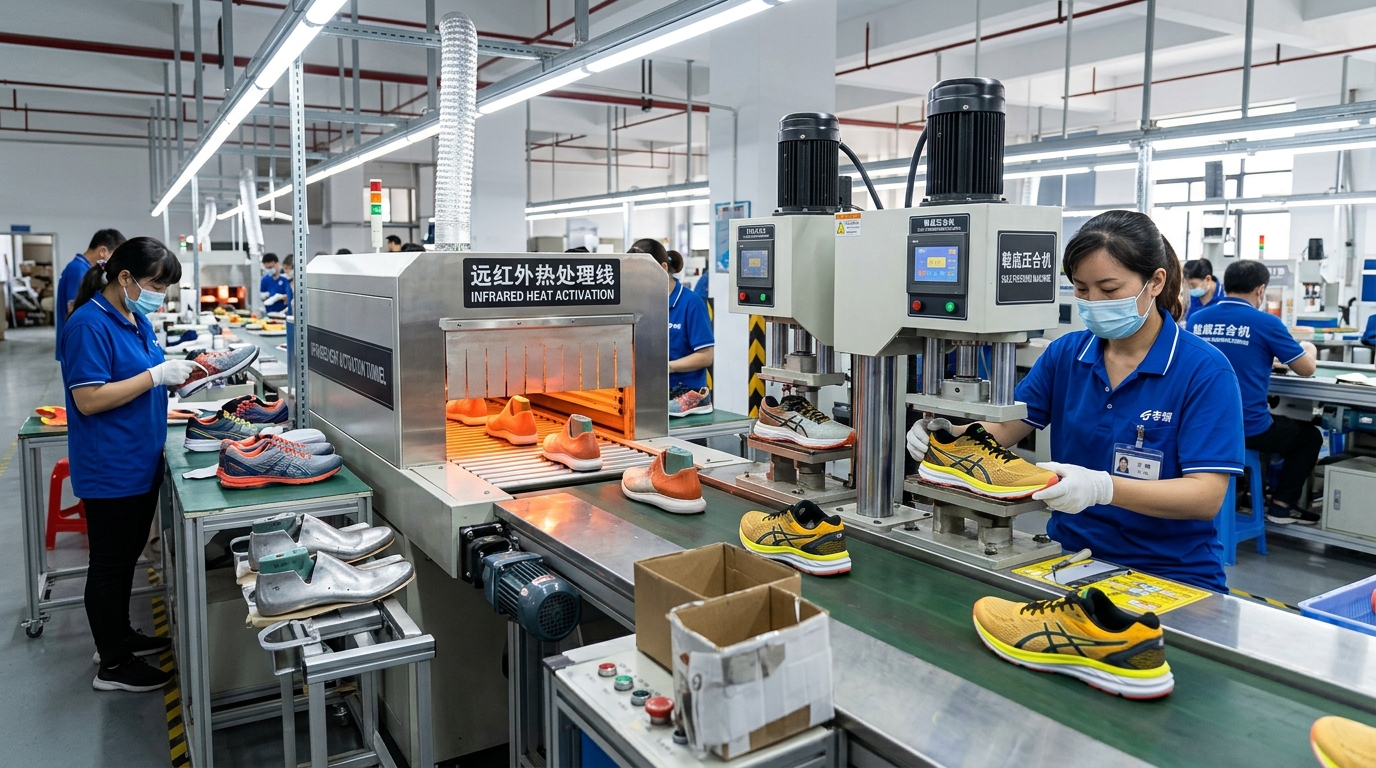

Factory Floor Photo: Automated conveyor line with infrared heat activation and hydraulic sole pressing machines.
Accurate shoe fit and symmetrical toe curvature define brand reputation. WIDEWAY employs computerized 9-pincer hydraulic automatic toe lasting machines equipped with electronic position memories storing over 120 customer last profiles.
Integrated micro-jet hot melt applicators inject solvent-free thermoplastic adhesive directly into the insole-to-upper interface before the Teflon wiper plates close. Followed immediately by automatic pneumatic heel seat lasting, our process ensures 100% heel counter stability and zero vamp asymmetry across all EU/US sizes.

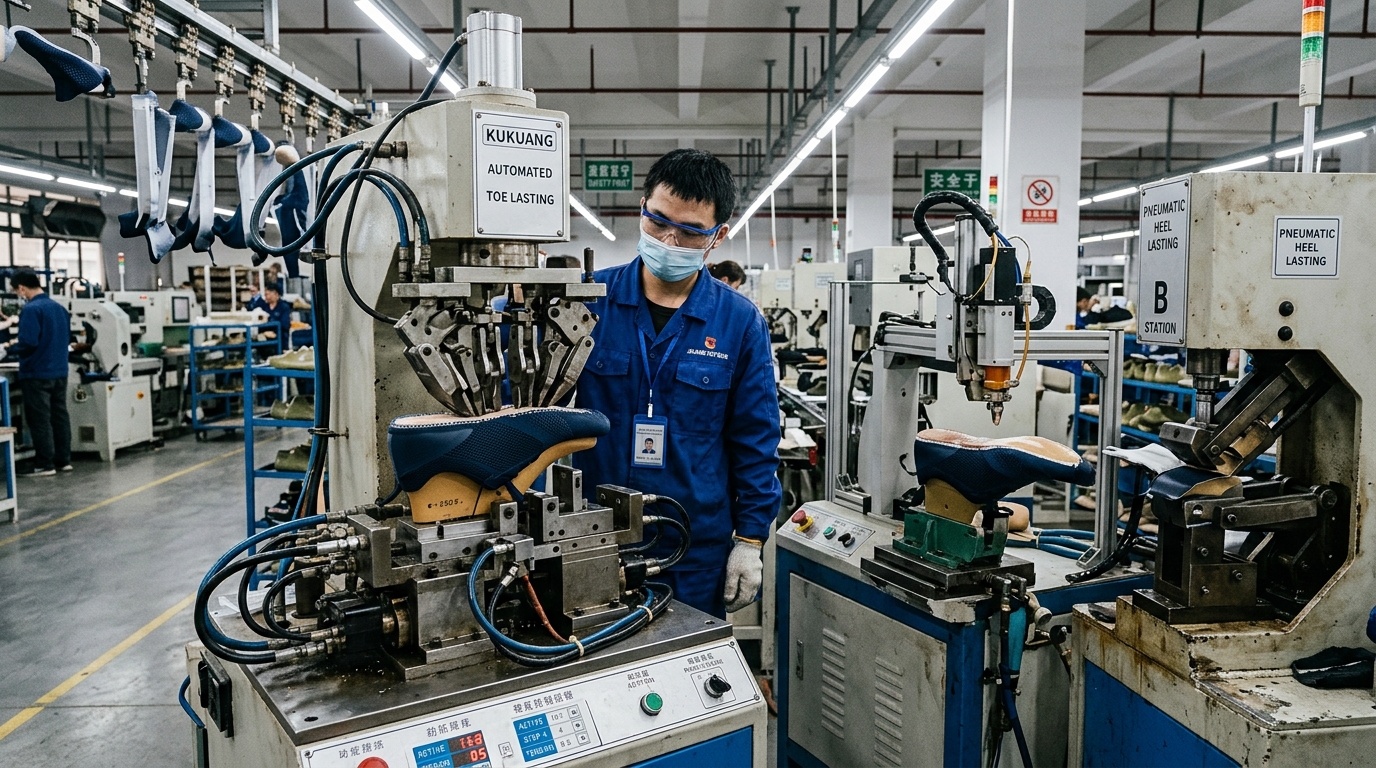

Factory Floor Photo: Computerized hydraulic toe lasting station pulling athletic shoe upper over precision last.
Our stitching floor houses 12 high-precision CNC programmable sewing machines and over 40 computerized cylinder-bed and post-bed sewing stations. Programmable optical sensors automatically trace CAD-designed stitch paths with sub-millimeter needle precision.
This automated setup guarantees identical stitch density (8–10 stitches/inch), reinforced bar-tacks on eyestays, and flawless reinforcement on lightweight Flyknit, engineered jacquard mesh, and genuine/synthetic leather uppers, completely eliminating skipped stitches and uneven seam allowances.
Factory Floor Photo: Automated sewing workshop with computerized CNC template stitching machines.
Raw material optimization directly translates into competitive wholesale pricing. WIDEWAY integrates multi-ply computerized CNC oscillating knife cutters alongside high-tonnage hydraulic beam clicker presses.
Our digital CAD nesting algorithm yields a material utilization rate of over 92% across synthetic microfiber leather, breathable textile rolls, and suede hides. High-power laser cutting stations ensure clean sealed edges on synthetic mesh without fraying.
Factory Floor Photo: Automated CNC cutting area with material feeding rolls and hydraulic press line.
Prior to boxing, 100% of manufactured shoes pass through our dedicated finishing and inspection lines. Technicians inspect for aesthetic symmetry, color consistency, cement overflow, and thread ends using industrial hot-air irons.
Crucially for international retailers (FILA, Diadora, Lidl, Aldi), every single shoe passes through a calibrated dual-sensor digital needle detector (sensitive to 0.8mm ferrous metals). Any product with broken needle fragments is automatically ejected and quarantined, guaranteeing zero legal liability for brand importers.
Factory Floor Photo: Finished shoe inspection line, Bally testing station, and conveyor needle detector.
WIDEWAY features an 8-meter high-bay palletized storage warehouse with an active holding capacity of 120,000 pairs of export-ready footwear. Barcode-managed inventory tracking ensures 100% carton labeling accuracy, SKU sorting, and pre-distribution pallet prep.
Our dual dedicated container docks allow electric forklifts to stage and stuff 20GP, 40GP, and 40HQ ocean containers simultaneously. Located just 75 km (1.2 hours) from Xiamen Port and 25 km from Quanzhou Port, your export containers clear customs swiftly without demurrage risk.
Factory Floor Photo: Finished footwear pallet racking warehouse with electric forklifts and container loading bay.
Complete audit disclosure of our Jinjiang factory capital equipment, operational parameters, and capacity output.
| Production Station | Machinery Type & Model | Active Units | Operational Parameters | Daily Processing Capacity |
|---|---|---|---|---|
| Material Cutting | Computerized Multi-Ply Oscillating Knife & Laser Bed | 4 Stations | ±0.15mm cutting tolerance; up to 15 layers | 18,000 cut pieces / day |
| Die Cutting | Hydraulic Beam Clicker Presses (HT-150TON) | 6 Units | 150 tons clamping pressure for thick EVA/Rubber | 22,000 cut soles/liners |
| Upper Stitching | Automated CNC Programmable Template Sewing Machines | 12 Beds | 3,000 RPM, digital tension control, 8-10 SPI | 8,000 sewn uppers / day |
| Toe Lasting | Computerized 9-Pincer Hydraulic Automatic Lasting | 4 Stations | Micro-jet hot melt; stored CAD last parameters | 10,000 lasted pairs / day |
| Heat Activation | Continuous Conveyor Far-Infrared Activation Tunnels | 4 Tunnels | 55°C–65°C digital PID control with IR lamps | 11,000 pairs / day |
| Sole Attaching | Pneumatic Universal Hydraulic Sole Pressing Units | 8 Units | 0.4–0.6 MPa multi-directional silicone bladder | 11,000 pairs / day |
| Sole Stabilization | Chilled Air Cold De-Lasting Conditioning Chamber | 4 Chambers | -5°C to 0°C rapid curing prevents shape memory recoil | 10,000 pairs / day |
| Metal Detection | Digital Conveyor Dual-Sensor Needle Detector (0.8mm) | 4 Lines | 100% inline product scan with auto-quarantine flap | 12,000 inspected pairs |
From incoming certified raw materials to sealed shipping containers, every step is rigorously governed by ISO 9001 and SATRA quality protocols.
Incoming mesh rolls, synthetic leathers, EVA pellets, and adhesives undergo physical tensile, colorfastness, and chemical RSL audits before batch release.
Multi-ply oscillating knife tables cut precision upper components with CAD nesting algorithms. Laser edges are heat-sealed against fraying.
Upper components are stitched on automated template machines. High-frequency TPU weld overlays and reflective badges are applied.
Uppers are pulled over precision customer lasts via 9-pincer hydraulic toe lasting and pneumatic heel seat machines with hot-melt glue injection.
Sole feather lines are precision-roughed to remove surface shine, followed by specialized waterborne primers to maximize bonding chemical affinity.
Uppers and outsoles traverse the infrared heat activation tunnel (60°C) before entering 3-stage pneumatic universal presses at 0.5 MPa.
Assembled footwear passes through a sub-zero cooling tunnel (-5°C) to freeze adhesive polymers and permanently set the shoe's ergonomic shape.
100% inline 0.8mm needle detection sweep, insoles inserted, tissue wrapped, packed into brand shoe boxes, and barcode master carton sealed.
Accurate container volume calculations (CBM) to optimize shipping costs and maximize container space utilization.
| Container Size | Usable Volume (CBM) | Sneakers / Running Shoes | Slides & EVA Sandals | Estimated Gross Weight | Xiamen Port Drayage Time |
|---|---|---|---|---|---|
| 20GP Container | 28.0 CBM | 2,800–3,200 Pairs (Boxed) | 5,500–6,500 Pairs (Polybag) | ~3,800 kg | 1.5 Hours Direct |
| 40GP Container | 58.0 CBM | 6,200–6,800 Pairs (Boxed) | 12,000–14,000 Pairs (Polybag) | ~7,800 kg | 1.5 Hours Direct |
| 40HQ High-Cube | 68.0 CBM | 7,500–8,500 Pairs (Boxed) | 15,000–18,000 Pairs (Polybag) | ~9,500 kg | 1.5 Hours Direct |
Planning your next footwear collection? Contact Amy at WIDEWAY for instant quotation matrices, material swatch catalogs, and sample scheduling.
+86 185 0595 9266
